Can anyone advise if the main gun on this model is designed to be able to be elevated or has it to be glued together in one fixed position.
I can't see anyway to put this together such that the gun can be elevated.

Don.

User avatar
Spud
Posts: 4156
Joined: Sat May 05, 2012 10:42 pm
Location: Cork
Contact:

Re: Dragon Sherman 105 model no 6548

Postby Spud » Thu Nov 14, 2013 10:40 pm

ive not built it but it should be almost all kits can do this

Don Foley
Posts: 25
Joined: Sat May 04, 2013 3:08 pm

Re: Dragon Sherman 105 model no 6548

Postby Don Foley » Sat Nov 16, 2013 12:06 pm

Hi,

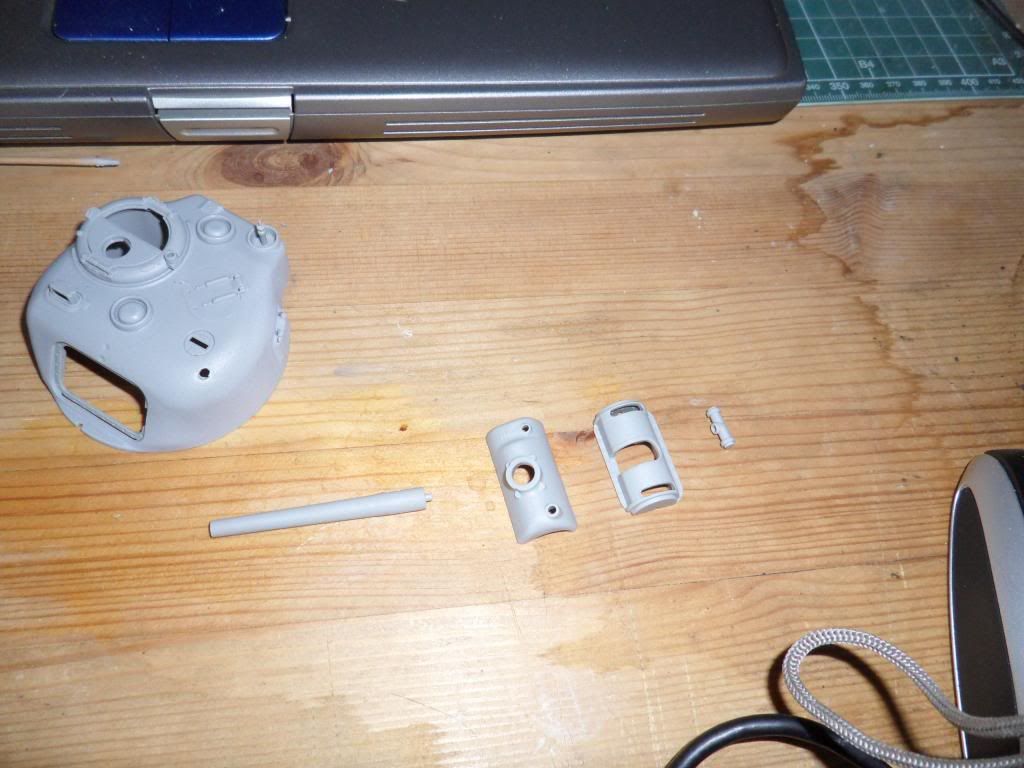

Here is an image of the parts for the main gun. The Barrel is a loose fit in the inner and outer mantlets. The pivot sits in the back of the mantlet to its left. There is nothing to hold it there, i.e., to stop it falling back into the Turret.
The only way I can see to get the gun to elevate is to glue the outer mantlet to the barrel in such a way as to clamp the inner mantlet between the outer mantlet and the pivot, but as I mentioned it is a loose fit and would require a sleeve of some sort. I've never come across this before but I've never built Dragon models so maybe I'm missing something.
Any advise/help would be appreciated.


User avatar
Spud
Posts: 4156
Joined: Sat May 05, 2012 10:42 pm
Location: Cork
Contact:

Re: Dragon Sherman 105 model no 6548

Postby Spud » Sat Nov 16, 2013 12:15 pm

Hey Don can you get the IMG code from PB.

I build dragon kits all the time but mainly German, im about to start the Turret on a Panzer 4 so ill see how that goes.

have you tried using some Tamiya Tape to tighten the barrel by wrapping it around in inner part of the barrel so its out of sight ?

Don Foley
Posts: 25
Joined: Sat May 04, 2013 3:08 pm

Re: Dragon Sherman 105 model no 6548

Postby Don Foley » Sat Nov 16, 2013 12:39 pm

Hi Spud,

You should be able to see the image now?
I was thinking about using Tamiya tape also. The whole thing seems a little sloppy. I would have thought this would have been engineered a bit better.

User avatar
Spud
Posts: 4156
Joined: Sat May 05, 2012 10:42 pm
Location: Cork
Contact:

Re: Dragon Sherman 105 model no 6548

Postby Spud » Sat Nov 16, 2013 1:26 pm

ok. it looks like that small bit glues to the back of the barrel and that should be workable then? did you try that?

User avatar
martay
Posts: 2102
Joined: Mon Apr 30, 2012 9:49 am

Re: Dragon Sherman 105 model no 6548

Postby martay » Sat Nov 16, 2013 8:30 pm

you could also use a bit of styrene to make a slieve for the inside of the mantlet and fit the arrel into that, the thickness of the styrene dictated by the amount of gap that is there
Man with hand in pocket, feel cocky all day

User avatar
Spud
Posts: 4156
Joined: Sat May 05, 2012 10:42 pm
Location: Cork
Contact:

Re: Dragon Sherman 105 model no 6548

Postby Spud » Sat Nov 16, 2013 9:29 pm

martay wrote:you could also use a bit of styrene to make a slieve for the inside of the mantlet and fit the arrel into that, the thickness of the styrene dictated by the amount of gap that is there


This is what i had to do just now on my panzer build with a replacement barrel.
viewtopic.php?f=32&t=1990&p=15941#p15941

User avatar
martay
Posts: 2102
Joined: Mon Apr 30, 2012 9:49 am

Re: Dragon Sherman 105 model no 6548

Postby martay » Sun Nov 17, 2013 12:12 am

somewhat similar to what i was thinking P, nice work on that btw, im thinkin if the barrel is going through the mantlet but the fit is not tight, a length of thin sprue cut to fit around inside the hole in the mantlet which could be sanded down to fit the barrel tightly into it, filling the gap where the barrel is loose giving a good fit, then with a bit of filler etc you would never know it was there, that is the way i would go anyway, prob real thin 0.5 thick strip as the gap wont be very big by the looks of it.
Man with hand in pocket, feel cocky all day

User avatar
Spud
Posts: 4156
Joined: Sat May 05, 2012 10:42 pm
Location: Cork
Contact:

Re: Dragon Sherman 105 model no 6548

Postby Spud » Sun Nov 17, 2013 12:44 am

Yea I needed to extend mind and stop it wobbling around.
